175268-1
Manufacturer:
TE Connectivity
Mfr.Part #:
175268-1
Datasheet:
Description:

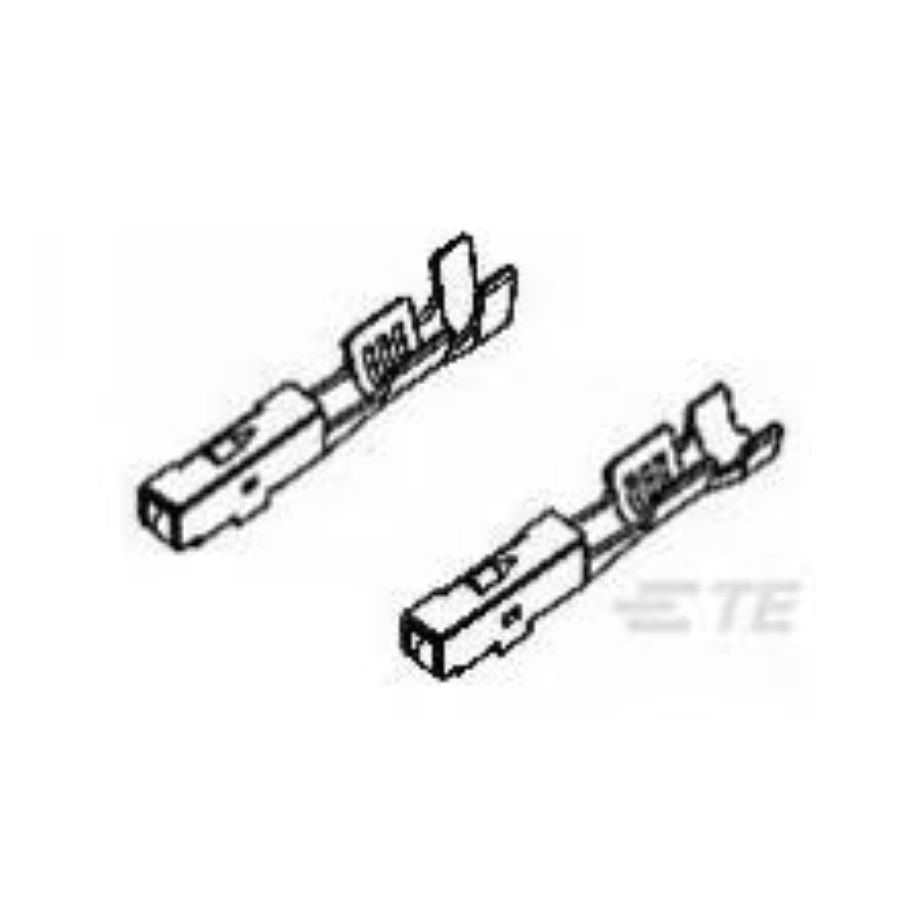

Automotive Connectors Cable Female 22 AWG to 18 AWG
| Parameter | Value |
|---|---|
| Length | 15.9 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 3.7 mm |
| Depth | 2.5 mm |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Connector, PCB, Receptacle, Signal, Socket |
| Wire/Cable Gauge | 22 AWG |
| Contact Resistance | 10 mΩ |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Insulation Diameter | 2.1 mm |
| Mating Tab Width | 1.8034 mm |
| Tab Thickness | 640 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Current Rating | 5 A |
| Packaging | Reel |
| RoHS | Compliant |
| Wire Gauge Range | 22 AWG to 18 AWG |
Stock: 2287
Distributors
pcbx
pcbxUnit Price$0.08131
Ext.Price$0.08131
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08131 | $0.08131 |
| 10 | $0.07248 | $0.72480 |
| 50 | $0.06461 | $3.23050 |
| 100 | $0.05709 | $5.70900 |
| 500 | $0.05044 | $25.22000 |
| 1000 | $0.04795 | $47.95000 |
| 3000 | $0.04558 | $136.74000 |
| 5000 | $0.04332 | $216.60000 |
